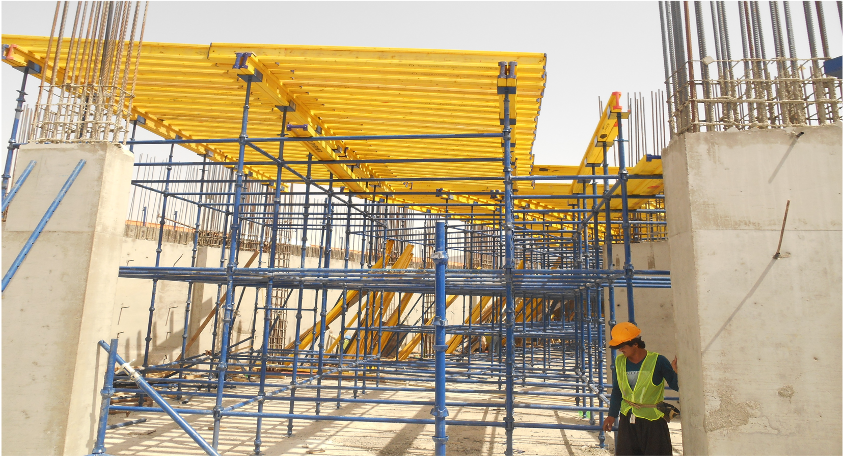

The SCAFFLOCK system is the most reliable shoring system for slab support, adaptable to any construction project and provide safe solution as an Access system at any height.
Efficient
- Multiple propping head makes it possible to use steel, aluminum or timber decking
- Screw-jack head and base-jack allows for 80cm extension range for height adjustment
- The beam brackets allows for down stand support at any height inside the slab area
Safe
- Multiple propping head makes it possible to use steel, aluminum or timber decking
- Screw-jack head and base-jack allows for 80cm extension range for height adjustment
- The beam brackets allows for down stand support at any height inside the slab area
SCAFFLOCK Standard
Withstands fresh concrete load of 40KN with just 2 connection levels and can only increase with additional connection levels

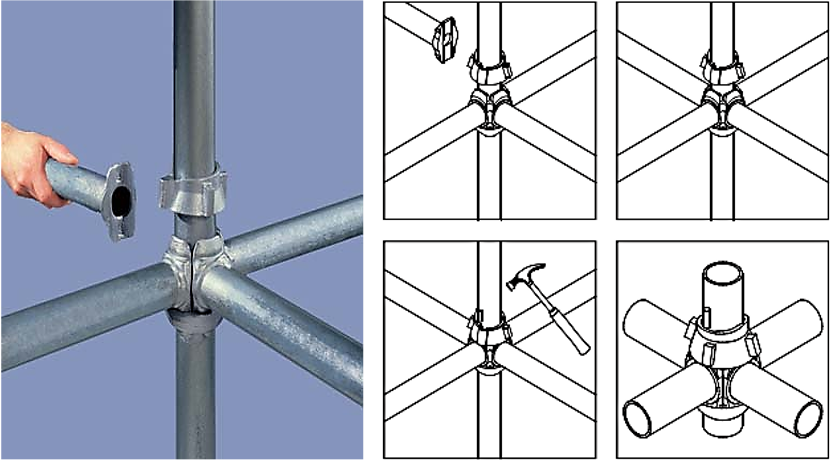

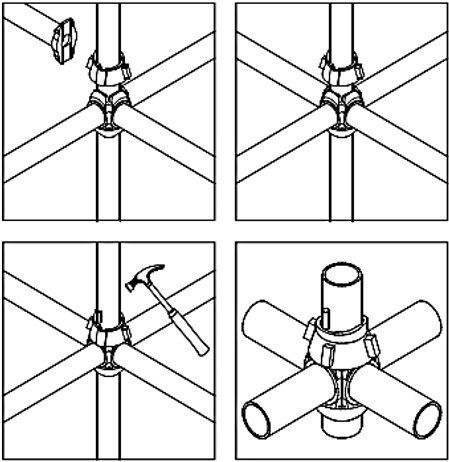

The drop-forged top cup of the standard allows for fastening the ledger ends with the standard by a simple blow of a hammer
Standard height range from 0.7m up to 3.0m that can be stacked on top of each other to reach desired height
Sustaining Cantilever Slab & Beam loads
The cantilever frames for edge-slabs and beams sustains 10KN load and are easily fastened to the standard the same way ledgers are fastened. The frame head-jacks allows for leveling the decking of the structure.

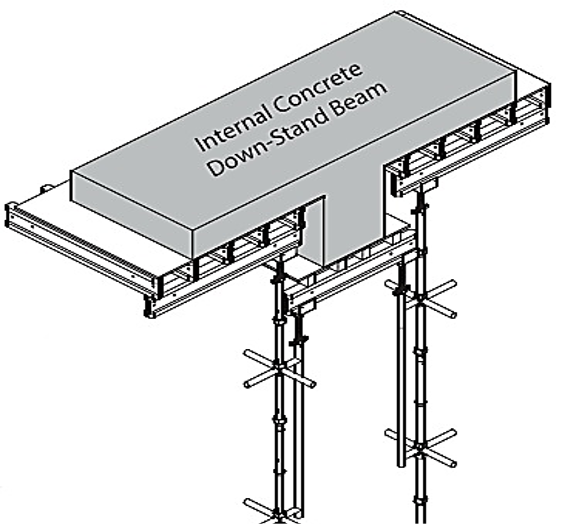

Down Stand Support at any Height
Support the internal concrete down-stand beam with the Beam Bracket and maintain continuous connection of the system. The beam bracket can sustain a load of 10KN.
Sustaining Cantilever Slab & Beam loads
The cantilever frames for edge-slabs and beams sustains 10KN load and are easily fastened to the standard the same way ledgers are fastened. The frame head-jacks allows for leveling the decking of the structure.
Stable Falsework Solution for inclined surface

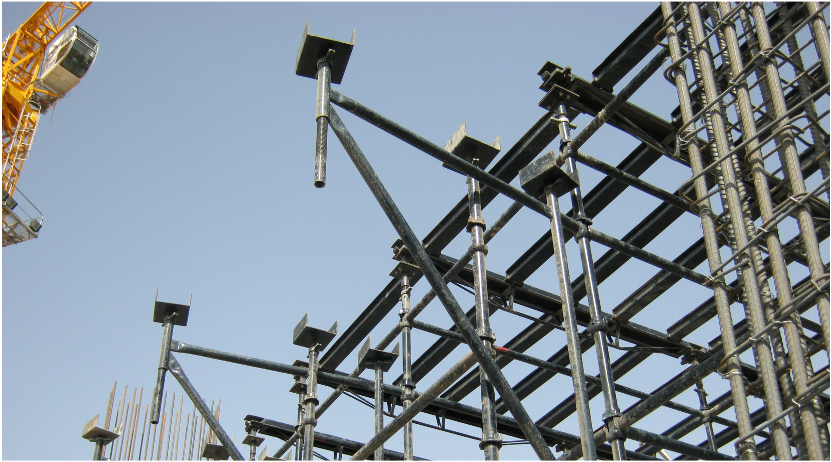

The head-jack and base-jack allows for adjustment and leveling the slab support up to 80cm
The web connection formed by the standards and ledgers create a stable falsework on inclined surfaces

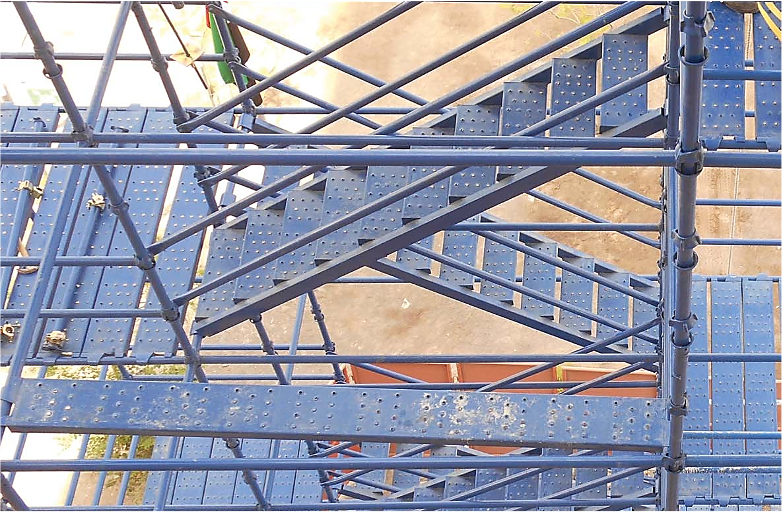

As a Temporary Stair Access
The diagonal ledgers have skewed ledger ends that fasten with the standard the same way as the horizontal ledgers, acting as a safety hand-rail and an internal diagonal brace.
Steel Stairs surface is patterned with anti-slip holes and are mounted on the ledgers with hooks
The steal board are available with different sizes, have patterned anti-slip holes, and are easily mounted on the ledgers using hooks for landing and walking platforms

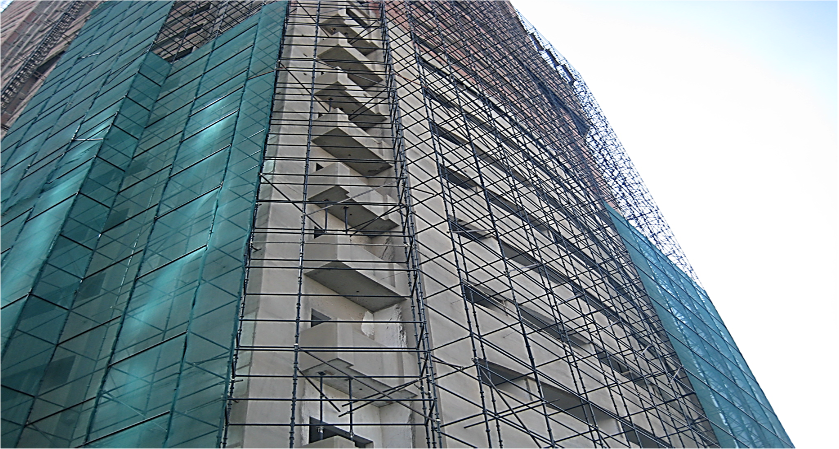

Safe Continuous Access at Any Height
Using Spigot Connector, the standards are stacked on top of each other to reach any desired height. The structure shape is not any issue thanks to the bracing system that allows for continuous and stable scaffolding access.
SCAFFLOCK is an ideal solution:

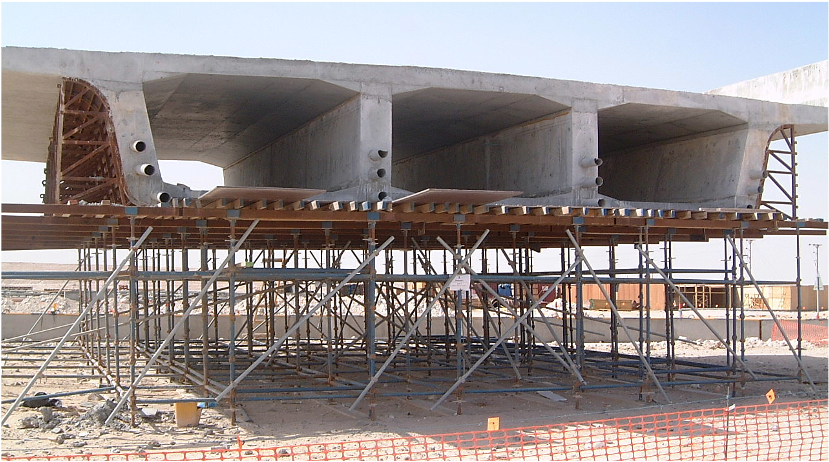

as a falsework for bridge building and tunneling, where high loads are generated
Load – bearing tower in industrial and power-station construction
In car park ramps where the inclined surface requires variable head and leg adjustments
Compatibility

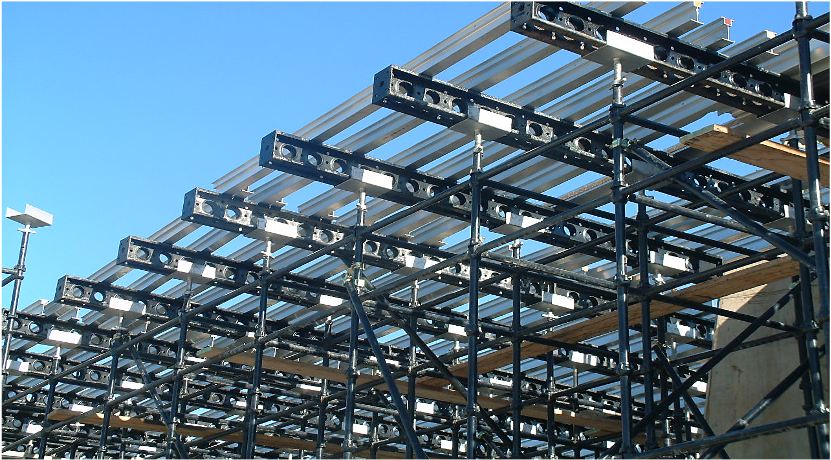

Using Soldier or Waler beams for primary decking when high loads are generated.
