Scaffco light weight PAP Frame system, with its 6mm Aluminum Omega & End profile, is the ultimate solution for quick & economical forming, with or without the use of cranes.
Easy Planning
- Optimized to any structure
- 6 Panel widths, in 4 height family groups, makes is easy for logistics & planning the forms on structures
- Hole grid of 5cm to allow for wall formation & adjustment of cross section size
Cost Effective
- Long lifespan made possible due to the aluminum frames
- Efficiency in forming shaft interior with the help of the AL-Steel Jacky that helps in filling the interior gap of the forms
Fare face concrete result
- Clean concrete finish from the high – grade forming sheet
- Co-ordinated panel formats allows for neat joint pattern when connected in parallel or perpendicular
Easy to use anywhere
- Handy aluminum – framed formwork that can be used for walls, columns & footings
- Frame connection & design allows the panels for connection in parallel & perpendicular

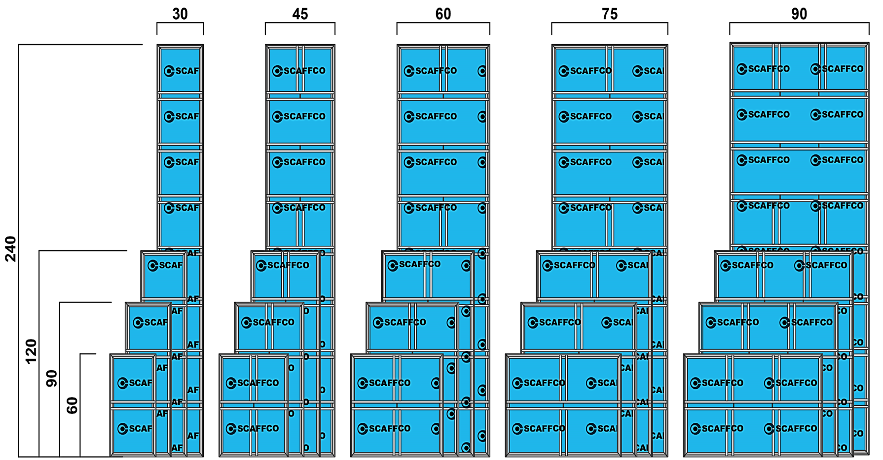

Logic Grid
Logical grid in heights of 60cm, 90cm, 120cm & 240cm, with width range from 30cm up to 90cm, in 15cm increments, for adaptability to the structure
For larger panel formation, the panels are connected with the panel connectors and stiffened with steel walers, allowing them to be repositioned by crane

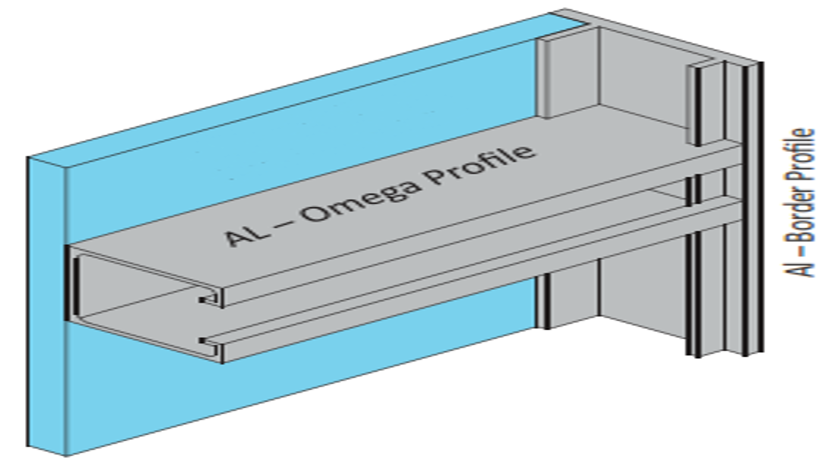

Aluminum Frames, High – Grade Sheet
The PAP frames are made from 6mm aluminum omega profile and border profile, welded with our state of the art robotic welders. The high – grade sheet allows for high number of re-use cycles, resulting with a fare faced concrete.

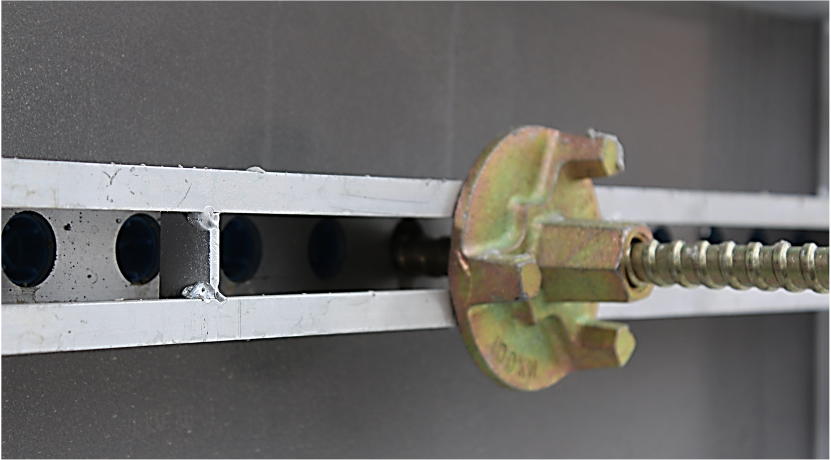

Flexible Tie Location
Wide range of different tying locations to overcome the reinforcement bars of the structure

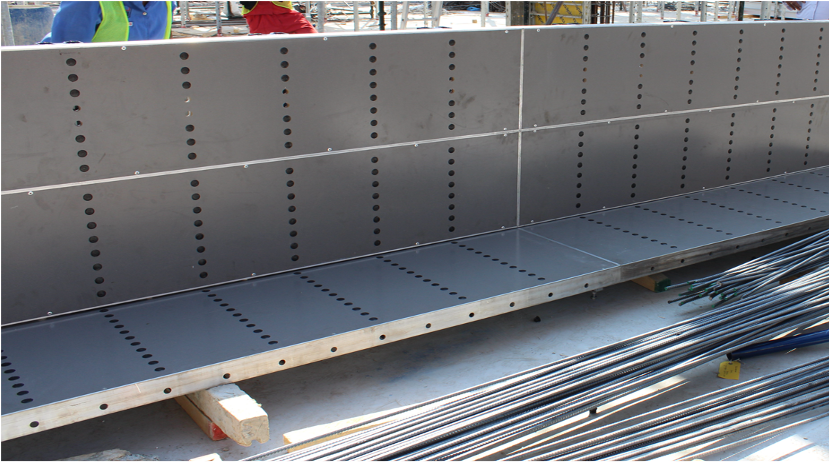

Structure Dimension Adjustment
No work needed to make the holes, the panels sheet is provided with hole grid that allow for 5cm adjustment of the cross section of the structure, and ceiled with high grade plastic plugs. The grid allows for panel connection at wall junctions and stop-ends.

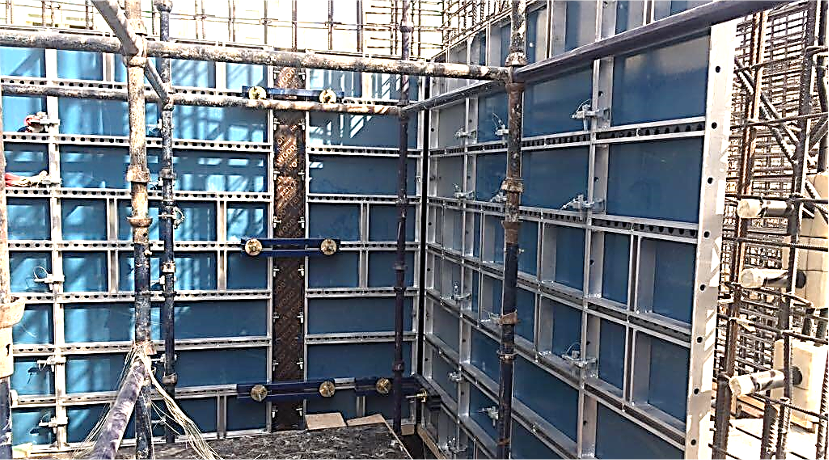

Overcoming Dimension Limitations
The Steel Jackey is used to complete up to 25cm the shutter when there is limited dimension of the inner core structure. It also acts a the key for dismantling after concrete pouring. The Steel Jackey can be fitted with any forming sheet.

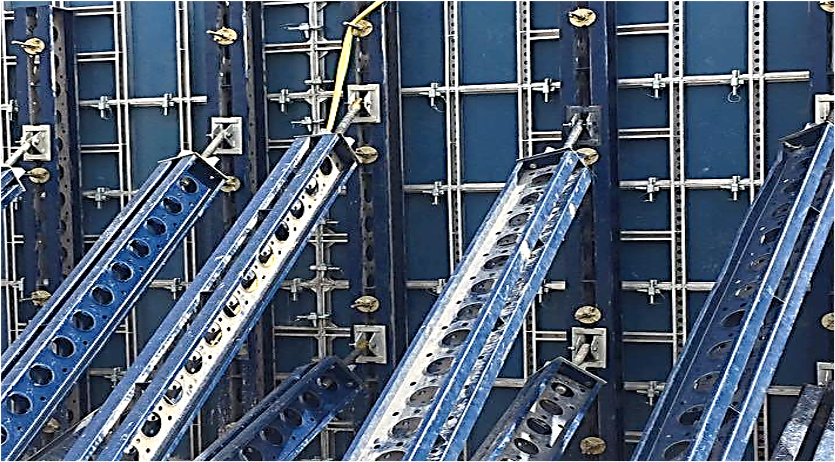

System Compatibility
With the rigid structure of the 6mm aluminum Omega and border profile, and with the help of simple connection accessories and efficient design, the PAP frames can be used with the Soldier beams to form the single sided walls.
Accessory Range
An extensive range of accessories that ensures safety in concrete pouring at any wall height.
Multi-Purpose System
With the help of efficient engineering design and simple accessories range, the PAP frames can be utilized to fulfill their purpose of forming walls by forming the foundations of the building structure; which then will be used to form the columns.

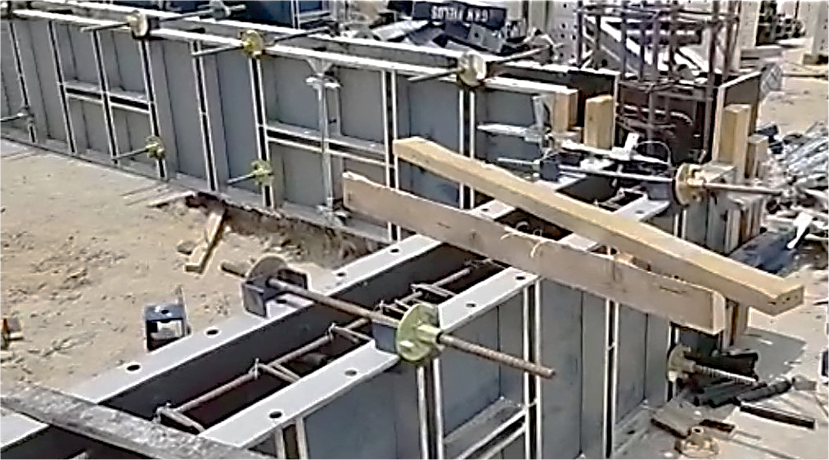

Foundation Anchoring
Without the use of tie rods through the concrete and supporting timbers, the foundation clamp hold the panels from the top.
